Flange

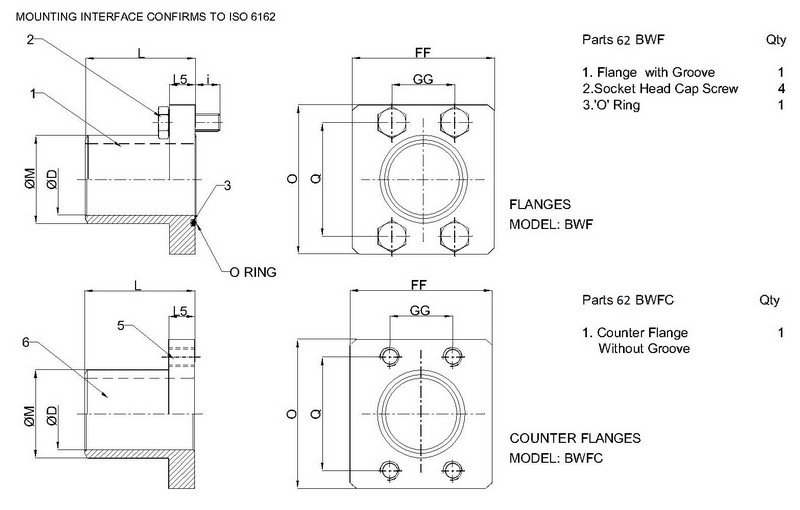

Counter Flange Standard Pressure Series (SAE CODE 62)
| Flange |
Counter Flange |
Size |
Pipe Sch |
PN Bar |
ØM |
ØD |
O |
Q |
FF |
GG |
L5 |
i |
L |
'O' Ring |
Cap Screw |
| 62BWF-21.3-160 |
62BWFC-21.3-160 |
1/2" |
160 |
414 |
21.3 |
12 |
56 |
40.5 |
45 |
18.2 |
18 |
12 |
32 |
19.0 X 3.55 |
M8X30 |
| 62BWF-26.6-160 |
62BWFC-26.6-160 |
3/4" |
160 |
414 |
26.6 |
16 |
71 |
50.8 |
51 |
23.8 |
20 |
15 |
32 |
25.0 X 3.55 |
M10X35 |
| 62BWF-33.4-160 |
62BWFC-33.4-160 |
1" |
160 |
401 |
33.4 |
21 |
81 |
57.2 |
57 |
27.8 |
22 |
18 |
32 |
32.5 X 3.55 |
M12X40 |
| 62BWF-42.2-160 |
62BWFC-42.2-160 |
1.1/4" |
160 |
310 |
42.2 |
30 |
95 |
66.6 |
70 |
31.8 |
22 |
18 |
32 |
37.5 X 3.55 |
M12X40 |
| 62BWF-42.2-XXS |
62BWFC-42.2-XXS |
1.1/4" |
XXS |
414 |
42.2 |
23 |
95 |
66.6 |
70 |
31.8 |
22 |
18 |
32 |
37.5 X 3.55 |
M12X40 |
| 62BWF-48.3-160 |
62BWFC-48.3-160 |
1.1/2" |
160 |
317 |
48.3 |
34 |
113 |
79.3 |
83 |
36.5 |
21 |
24 |
38 |
47.5 X 3.55 |
M16X45 |
| 62BWF-48.3-XXS |
62BWFC-48.3-XXS |
1.1/2" |
XXS |
414 |
48.3 |
28 |
113 |
79.3 |
83 |
36.5 |
21 |
24 |
38 |
47.5 X 3.55 |
M16X45 |
| 62BWF-60.3-160 |
62BWFC-60.3-160 |
2" |
160 |
324 |
60.3 |
43 |
133 |
96.8 |
102 |
44.5 |
30 |
30 |
45 |
56.0 X 3.55 |
M20X60 |
| 62BWF-60.3-XXS |
62BWFC-60.3-XXS |
2" |
XXS |
414 |
60.3 |
38 |
133 |
96.8 |
102 |
44.5 |
30 |
30 |
45 |
56.0 X 3.55 |
M20X60 |
| 62BWF-73.0-160 |
62BWFC-73.0-160 |
2.1/2" |
160 |
296 |
73.0 |
54 |
175 |
123.8 |
127 |
58.7 |
32 |
33 |
51 |
69.0 X 3.55 |
M22X65 |
| 62BWF-73.0-XXS |
61BWFC-73.0-XXS |
2.1/2" |
XXS |
414 |
73.0 |
45 |
175 |
123.8 |
127 |
58.7 |
32 |
33 |
51 |
69.0 X 3.55 |
M22X65 |
| 62BWF-88.9-160 |
62BWFC-88.9-160 |
3" |
160 |
288 |
88.9 |
66 |
216 |
152.4 |
153 |
71.4 |
35 |
45 |
63 |
85.0 X 3.55 |
M30X80 |
| 62BWF-88.9-XXS |
62BWFC-88.9-XXS |
3" |
XXS |
414 |
88.9 |
58 |
216 |
152.4 |
153 |
71.4 |
35 |
45 |
63 |
85.0 X 3.55 |
M30X80 |
